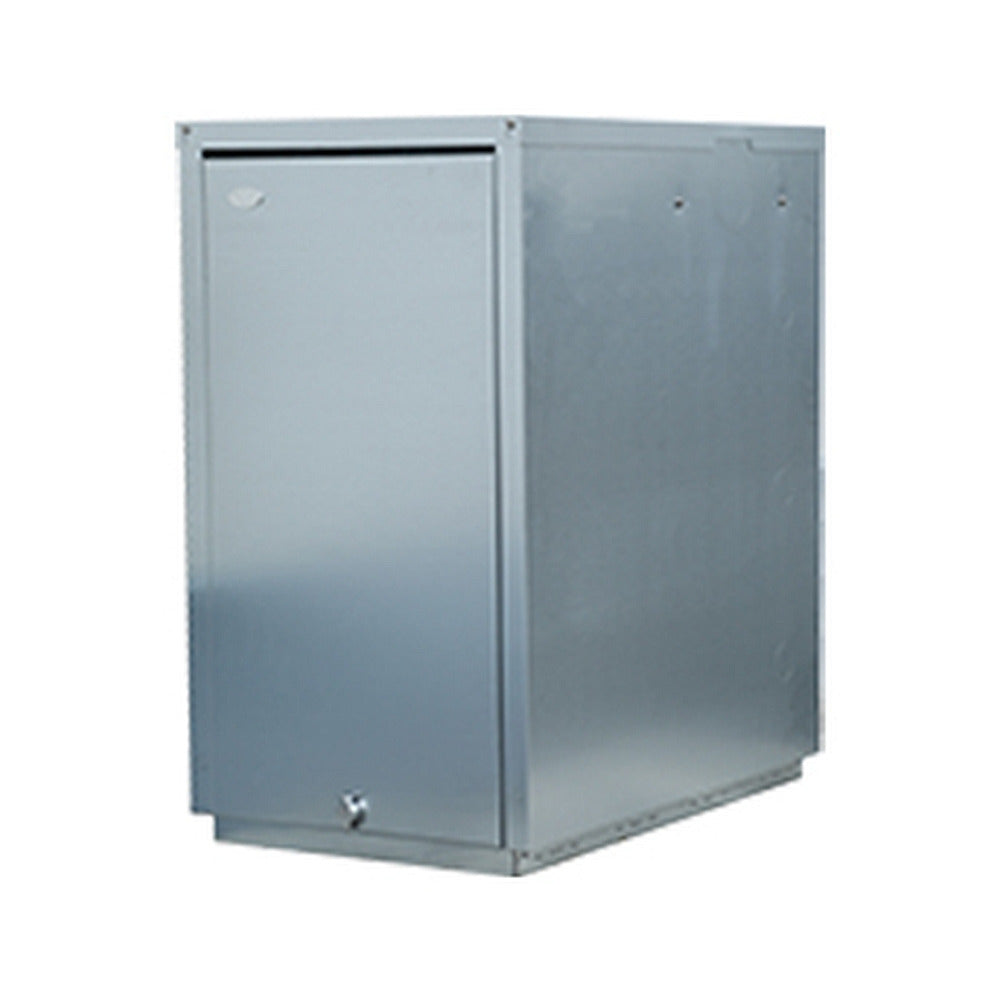

The grant vortex external module comes complete with a factory-fitted multi-directional flue with optional side or rear flue exits. The free-standing external oil-fired boiler is designed for when internal space is limited. It is available in outputs from 15 - 70kW
- Includes a factory fitted frost stat preset to 2ᵒc
- Optional pipe entry points
- High efficiency SEAI HARP \A\ rating
| SPECIFICATION | |
| Brand | Grant |
| Sub Brand | Vortex |
| Unit Length of Piece (mm) | 505mm |
| Unit Width of Piece (mm) | 800mm |
| Unit Height of Piece (mm) | 908mm |
| Unit Weight of Piece (Kg) | 169kg |
| Boiler Type | Vortex |
| Compliance Approvals | EN ISO 9001:2015 |
| ERP Rating | A Energy Rating |
| Factory Fitted Nozzle Size | 0.85/60ᵒ ES |
| Fitting Location | Outdoor |
| Flow Connection | 28mm |
| Flue Connection | Top, threaded bar |
| Flue Included | Yes |
| Frost Thermostat Fitted | Yes |
| Fuel Type | Kerosene |
| Guarantee | One Year Manufacturers Warranty With Five Years Guarantee On Boiler Heat Exchanger (T&Cs Apply) |
| Harp Efficiency Rating | 97% Efficiency |
| Low NOx Compliance | Yes |
| Output Btu/h | 90/120 |
| Return Connection | 28mm |
| Service Access | No |
+
